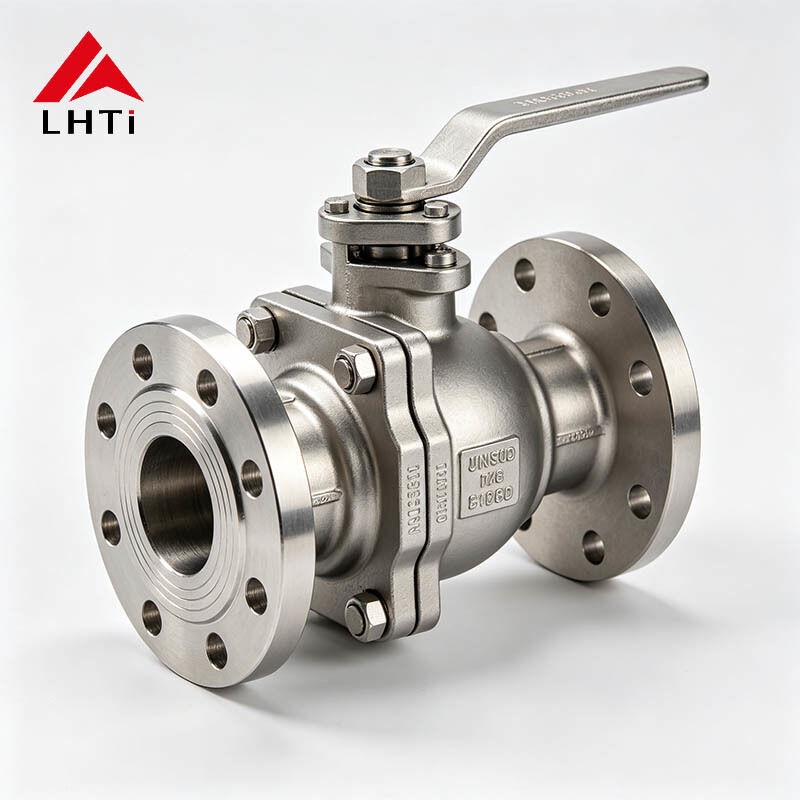

Floating Titanium Ball Valve Corrosion Resistant Industrial Pipeline Ball Valve

The floating titanium ball valve is a high-performance shut-off valve designed for highly corrosive media. Constructed with titanium alloy and featuring a floating ball structure, it offers excellent corrosion resistance, low flow resistance, quick opening/closing, and reliable sealing, making it ideal for corrosive applications in chemical, metallurgical, marine, environmental, and other industries.

1. Floating Ball Design for Tight Shutoff

   The floating ball moves under medium pressure to press against the downstream sealing surface, ensuring reliable unidirectional sealing. Sealing force increases with medium pressure, delivering zero-leakage performance even at higher pressures.

2. Ultra-Low Flow Resistance

   As one of the lowest-resistance valve types, it maintains minimal pressure drop even with reduced bore designs, reducing pipeline energy consumption and improving system efficiency.

3. Quick Quarter-Turn Operation

   Full open/close function is achieved with just a 90° rotation, enabling fast shutoff and ideal for emergency process control.

4. Corrosion-Resistant Sealing System

   Valve seats use PTFE, RPTFE, PPL, and other elastic, corrosion-resistant materials, ensuring stable sealing performance and long service life in aggressive media.

5. Versatile Actuation Options

   Available with manual, gear, pneumatic, electric, or hydraulic actuators, supporting integration into automated systems for remote and intelligent control.

6. Smooth Bore for Easy Maintenance

   The full-port smooth bore prevents media buildup and allows direct pigging operations, minimizing maintenance costs and pipeline clogging risks.

• Pressure Rating: PN1.6-10.0MPa / Class150-600Lb
• Nominal Diameter: DN15-DN250 / 1/2"-10"
• Actuation: Manual, Gear, Pneumatic, Hydraulic, Electric
• Applicable Media: Oxidizing corrosive media (acids, alkalis, salts, etc.)
• Main Materials:
  • Body/Cover: TA1, TA2, TA10, Gr2, Gr3
  • Ball: TA1, TA2, TA10, Gr2, Gr3
  • Stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
• Seal Materials: PTFE, RPTFE, PPL, PEEK, etc.
• Design Standards: GB/T12237, API6D, ASME B16.34
• Face-to-Face Dimensions: GB/T12221, API6D, ASME B16.10
• Connection Flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
• Testing Standards: JB/T9092, GB/T13927, API6D, API598

Suitable for chemical, chlor-alkali, metallurgical, pharmaceutical, desalination, environmental desulfurization, and fine chemical industries, handling oxidizing acids, alkalis, salts, and other corrosive media.
