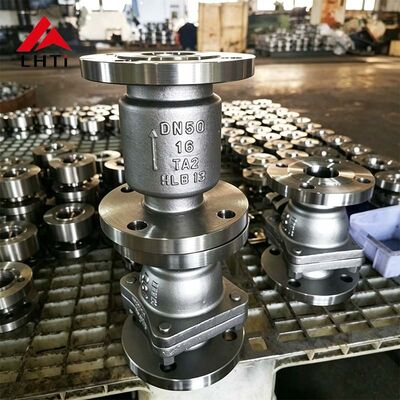

Titanium Alloy Check Valve DN50 PN16 Corrosion Resistant for Industrial Pipelines

Nama merek:	LHTi
Nomor Model:	Katup Periksa Paduan Titanium
Jumlah Pesanan Minimum:	1 buah
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	5000 buah per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Baoji, Tiongkok

Sertifikasi:

ISO9001

Kemasan rincian:

Kasus kayu lapis atau palet, atau sesuai kebutuhan Anda

Menyediakan kemampuan:

5000 buah per bulan

Menyoroti:

Titanium alloy check valve DN50

Corrosion resistant industrial check valve

PN16 pipeline check valve

Deskripsi Produk

Titanium Alloy Check Valve DN50 PN16 Corrosion Resistant Industrial Pipeline Valve

The titanium alloy check valve is a high-performance one-way valve designed to prevent medium backflow in pipelines, featuring outstanding corrosion resistance, reliable sealing and long service life. It is widely used in chemical, petrochemical, pharmaceutical and other industries with corrosive working conditions. Below are the main material specifications and installation dimensions for reference:

Main Parts Material Specification

Part Name	ZG1Cr18Ni9T / 304 CF8	ZGOOCr18Ni10 / 304L CF3	ZG1Cr18Ni12Mo2Ti / 316 CF8M	ZGOOCr17Ni14mO2 / 316L CF3M	WCB
Body/Cap	OCr18Ni9	OOCr18Ni10	OOCr18Ni9Mo2	OOCr18Ni10Mo2	WCB
Valve Piece	OCr18Ni9	OOCr18Ni10	OOCr18Ni9Mo2	OOCr18Ni10Mo2	1Cr3

Main Connection Dimensions of Titanium Alloy Check Valve

Nominal Pressure (MPa)	Nominal Diameter DN (mm)	Dimensions (mm)		Nominal Pressure (MPa)	Nominal Diameter DN (mm)	Dimensions (mm)
		L	H			L	H
H42W-1.6	15	85	95	H42W-2.5	80	200	195
	20	95	105		100	210	230
	25	105	115		125	275	275
	32	150	135		150	300	300
	40	160	145		200	380	360
	50	170	160		250	430	425
	65	180	180	H42W-4.0	50	170	160
	80	200	195		65	180	180
	100	210	215		80	200	195
	125	275	245		100	210	230
	150	300	280		125	275	270
	200	380	335		150	300	300
	250	430	405		200	380	375
H42W-2.5	20	95	105		250	430	445
	25	105	115
	32	150	135
	40	160	145
	50	170	160
	65	180	180
