Rincian Produk
Tempat asal: BaoJi Shaanxi China
Nama merek: LHTI
Sertifikasi: ISO9001
Nomor model: LH-145
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 5 buah
Harga: US dollar $10/pc-US dollar $60/pc
Syarat-syarat pembayaran: L/C, D/P, T/T, Western Union, paypal dll
Menyediakan kemampuan: 10000 Sepotong Per Bulan
Bahan: |
Titanium |
Nilai: |
Gr1,Gr2 |
Kemurnian: |
99,5% min |
Derajat: |
45 derajat /90 derajat |
Radius: |
Radius Panjang |
Kata-kata kunci: |
Siku titanium |
Kata kunci: |
tikungan titanium |
Kata kunci: |
pipa fitting titanium |
kemasan: |
kasus kayu lapis |
Permukaan: |
permukaan pengawetan / permukaan Sandblasting dll |
Bahan: |
Titanium |
Nilai: |
Gr1,Gr2 |
Kemurnian: |
99,5% min |
Derajat: |
45 derajat /90 derajat |
Radius: |
Radius Panjang |
Kata-kata kunci: |
Siku titanium |
Kata kunci: |
tikungan titanium |
Kata kunci: |
pipa fitting titanium |
kemasan: |
kasus kayu lapis |
Permukaan: |
permukaan pengawetan / permukaan Sandblasting dll |

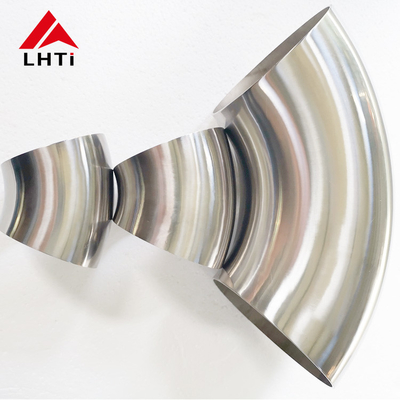

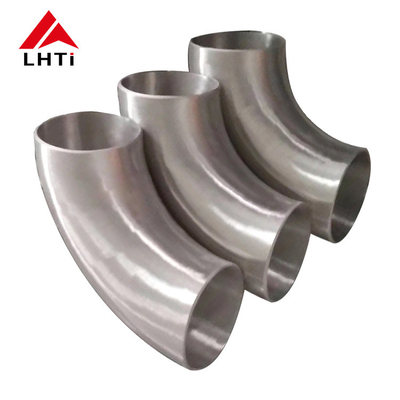

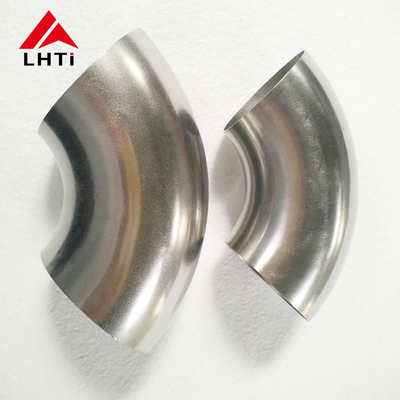

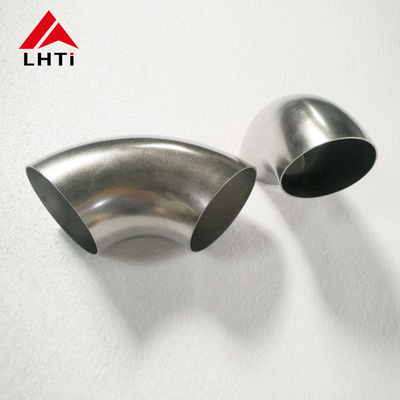

Titanium murni siku, 45 derajat 90 derajat pipa titanium
Toleransi dimensi tabung titanium sesuai dengan ASME B16.9Titanium ketebalan dinding sesuai dengan standar jadwal 10S dan 40S ASME B36.19M pipa dinding.
1. Lebih detail
| Titanium siku | |
| Bahan | Titanium ((Gr1,Gr2,Gr7,Gr12) |
| Standar | Ansi/asme b16.9, b16.28 |
| Gelar | 30D, 45D, 90D, 120D, 180D |
| Ketebalan dinding | Sch5 s-Sch160 s ((1-15mm) |
| Teknis | Menekan, dilas, tanpa jahitan |
| Pemeriksaan untuk jalur las | Uji sinar-X atau uji penetrasi pewarna |
| Laporan Tes Bahan | EN10204.3.1Komposisi Kimia dan Sifat Fisik |
| Merek Produk | Semua produk ditandai dengan laser setelah mereka selesai |
| Aplikasi | Industri minyak bumi, industri kimia, klorkali, metalurgi, karbonisasi, pendingin, industri ringan, industri garam, tenaga listrik, dll. |
| Sertifikasi | Jerman TUV Assessment, ISO9001:2008 |
| Pembayaran | T / T di muka, L / C pada pandangan, Western Union, Paypal, Escrow, |
| Paket | Kantong plastik pertama, kemudian bentuk di dalam, kasus plywood di luar |
| Jadwal 10S cahaya N.P.S. | Jadwal 40S NPS standar. | ||||||||||||||||
| Ukuran pipa nominal | Diameter luar | Pusat ke Wajah | Ketebalan dinding | Diameter dalam | Kira-kira. Wt dalam pound / kg. | Ketebalan dinding | Diameter dalam | Kira-kira. Wt dalam pound / kg. | |||||||||
| dalam | mm | dalam | mm | dalam | mm | dalam | mm | dalam | mm | lb | kg | dalam | mm | dalam | mm | lb | kg |
| 1/2 " | 15 | 0.84 | 21.34 | 0.63 | 15.88 | 0.08 | 2.11 | 0.67 | 17.12 | 0.04 | 0.02 | 0.11 | 2.77 | 0.62 | 15.80 | 0.05 | 0.02 |
| 3/4 " | 20 | 1.05 | 26.67 | 0.44 | 11.11 | 0.08 | 2.11 | 0.88 | 22.45 | 0.04 | 0.02 | 0.11 | 2.87 | 0.82 | 20.93 | 0.05 | 0.02 |
| 1 " | 25 | 1.32 | 33.40 | 0.88 | 22.23 | 0.11 | 2.77 | 1.10 | 27.86 | 0.11 | 0.05 | 0.13 | 3.38 | 1.05 | 26.64 | 0.14 | 0.06 |
| 1-1/4 " | 32 | 1.66 | 42.16 | 1.00 | 25.40 | 0.11 | 2.77 | 1.44 | 36.63 | 0.14 | 0.06 | 0.14 | 3.56 | 1.38 | 35.05 | 0.22 | 0.10 |
| 1-1/2 " | 40 | 1.90 | 48.26 | 1.13 | 28.58 | 0.11 | 2.77 | 1.68 | 42.72 | 0.22 | 0.10 | 0.15 | 3.68 | 1.61 | 40.89 | 0.28 | 0.13 |
| 2 " | 50 | 2.38 | 60.33 | 1.38 | 34.93 | 0.11 | 2.77 | 2.16 | 54.79 | 0.32 | 0.15 | 0.15 | 3.91 | 2.07 | 52.50 | 0.50 | 0.23 |
| 2-1/2 " | 65 | 2.88 | 73.03 | 1.75 | 44.45 | 0.12 | 3.05 | 2.64 | 66.93 | 0.61 | 0.28 | 0.20 | 5.16 | 2.47 | 62.71 | 0.97 | 0.44 |
| 3 " | 80 | 3.50 | 88.90 | 2.00 | 50.80 | 0.12 | 3.05 | 3.26 | 82.80 | 0.79 | 0.36 | 0.22 | 5.49 | 3.07 | 77.93 | 1.36 | 0.62 |
| 3-1/2 " | 90 | 4.00 | 101.60 | 2.25 | 57.15 | 0.12 | 3.05 | 3.76 | 95.50 | 0.95 | 0.43 | 0.23 | 5.74 | 3.55 | 90.12 | 1.79 | 0.81 |
| 4 " | 100 | 4.50 | 114.30 | 2.50 | 63.50 | 0.12 | 3.05 | 4.26 | 108.20 | 1.36 | 0.62 | 0.24 | 6.02 | 4.03 | 102.26 | 2.63 | 1.19 |
| 5 " | 125 | 5.56 | 141.30 | 3.13 | 79.38 | 0.13 | 3.40 | 5.30 | 134.49 | 2.29 | 1.04 | 0.26 | 6.55 | 5.05 | 128.19 | 4.33 | 1.96 |
| 6 " | 150 | 6.63 | 168.28 | 3.75 | 95.25 | 0.13 | 3.40 | 6.36 | 161.47 | 3.43 | 1.56 | 0.28 | 7.11 | 6.07 | 154.05 | 6.86 | 3.11 |
| 8 " | 200 | 8.63 | 219.08 | 5.00 | 127.00 | 0.15 | 3.76 | 8.33 | 211.56 | 6.75 | 3.06 | 0.32 | 8.18 | 7.98 | 202.72 | 13.50 | 6.12 |
| 10 " | 250 | 10.75 | 273.05 | 6.25 | 158.75 | 0.17 | 4.19 | 10.42 | 264.67 | 12.50 | 5.67 | 0.37 | 9.27 | 10.02 | 254.51 | 24.50 | 11.11 |
| 12 " | 300 | 12.75 | 323.85 | 7.50 | 190.50 | 0.18 | 4.57 | 12.39 | 314.71 | 17.00 | 7.71 | 0.38 | 9.53 | 12.00 | 304.80 | 37.50 | 17.01 |
| 14 " | 350 | 14.00 | 355.60 | 8.75 | 222.25 | 0.19 | 4.78 | 13.62 | 346.05 | 23.00 | 10.43 | 0.38 | 9.53 | 13.25 | 336.55 | 44.50 | 20.18 |
| 16 " | 400 | 16.00 | 406.40 | 10.00 | 254.00 | 0.19 | 4.78 | 15.62 | 396.85 | 30.00 | 13.61 | 0.38 | 9.53 | 15.25 | 387.35 | 58.00 | 26.30 |
| 18 " | 450 | 18.00 | 457.20 | 11.25 | 285.75 | 0.19 | 4.78 | 17.62 | 447.65 | 38.00 | 17.23 | 0.38 | 9.53 | 17.25 | 438.15 | 75.00 | 34.01 |
| 20 " | 500 | 20.00 | 508.00 | 12.50 | 317.50 | 0.22 | 5.54 | 19.56 | 496.93 | 63.00 | 28.57 | 0.38 | 9.53 | 19.25 | 488.95 | 94.00 | 42.63 |
| 24 " | 600 | 24.00 | 609.60 | 15.00 | 381.00 | 0.25 | 6.35 | 23.50 | 596.90 | 89.00 | 40.36 | 0.38 | 9.53 | 23.25 | 590.55 | 133.00 | 60.32 |
| Jadwal 10S cahaya N.P.S. | Jadwal 40S NPS standar. | ||||||||||||||||
| Ukuran pipa nominal | Diameter luar | Pusat ke Wajah | Diameter dalam | Ketebalan dinding | Kira-kira. Wt dalam pound / kg. | Diameter dalam | Ketebalan dinding | Kira-kira. Wt dalam pound / kg. | |||||||||
| dalam | mm | dalam | mm | dalam | mm | dalam | mm | dalam | mm | lb | kg | dalam | mm | dalam | mm | lb | kg |
| 1/2 " | 15 | 0.84 | 21.34 | 1.50 | 38.10 | 0.67 | 17.12 | 0.08 | 2.11 | 0.08 | 0.04 | 0.62 | 15.80 | 0.11 | 2.77 | 0.10 | 0.05 |
| 3/4 " | 20 | 1.05 | 26.67 | 1.13 | 28.58 | 0.88 | 22.45 | 0.08 | 2.11 | 0.09 | 0.04 | 0.82 | 20.93 | 0.11 | 2.87 | 0.11 | 0.05 |
| 1 " | 25 | 1.32 | 33.40 | 1.50 | 38.10 | 1.10 | 27.86 | 0.11 | 2.77 | 0.17 | 0.08 | 1.05 | 26.64 | 0.13 | 3.38 | 0.20 | 0.09 |
| 1-1/4 " | 32 | 1.66 | 42.16 | 1.88 | 47.63 | 1.44 | 36.63 | 0.11 | 2.77 | 0.29 | 0.13 | 1.38 | 35.05 | 0.14 | 3.56 | 0.32 | 0.15 |
| 1-1/2 " | 40 | 1.90 | 48.26 | 2.25 | 57.15 | 1.68 | 42.72 | 0.11 | 2.77 | 0.39 | 0.18 | 1.61 | 40.89 | 0.15 | 3.68 | 0.50 | 0.23 |
| 2 " | 50 | 2.38 | 60.33 | 3.00 | 76.20 | 2.16 | 54.79 | 0.11 | 2.77 | 0.65 | 0.29 | 2.07 | 52.50 | 0.15 | 3.91 | 0.89 | 0.40 |
| 2-1/2 " | 65 | 2.88 | 73.03 | 3.75 | 95.25 | 2.64 | 66.93 | 0.12 | 3.05 | 1.08 | 0.49 | 2.47 | 62.71 | 0.20 | 5.16 | 1.72 | 0.78 |
| 3 " | 80 | 3.50 | 88.90 | 4.50 | 114.30 | 3.26 | 82.80 | 0.12 | 3.05 | 1.54 | 0.70 | 3.07 | 77.93 | 0.22 | 5.49 | 2.75 | 1.25 |
| 3-1/2 " | 90 | 4.00 | 101.60 | 5.25 | 133.35 | 3.76 | 95.50 | 0.12 | 3.05 | 2.14 | 0.97 | 3.55 | 90.12 | 0.23 | 5.74 | 3.57 | 1.62 |
| 4 " | 100 | 4.50 | 114.30 | 6.00 | 152.40 | 4.26 | 108.20 | 0.12 | 3.05 | 2.72 | 1.23 | 4.03 | 102.26 | 0.24 | 6.02 | 5.26 | 2.39 |
| 5 " | 125 | 5.56 | 141.30 | 7.50 | 190.50 | 5.30 | 134.49 | 0.13 | 3.40 | 4.58 | 2.08 | 5.05 | 128.19 | 0.26 | 6.55 | 8.65 | 3.92 |
| 6 " | 150 | 6.63 | 168.28 | 9.00 | 228.60 | 6.36 | 161.47 | 0.13 | 3.40 | 6.86 | 3.11 | 6.07 | 154.05 | 0.28 | 7.11 | 13.75 | 6.24 |
| 8 " | 200 | 8.63 | 219.08 | 12.00 | 304.80 | 8.33 | 211.56 | 0.15 | 3.76 | 13.50 | 6.12 | 7.98 | 202.72 | 0.32 | 8.18 | 27.00 | 12.24 |
| 10 " | 250 | 10.75 | 273.05 | 15.00 | 381.00 | 10.42 | 264.67 | 0.17 | 4.19 | 25.00 | 11.34 | 10.02 | 254.51 | 0.37 | 9.27 | 48.50 | 22.00 |
| 12 " | 300 | 12.75 | 323.85 | 18.00 | 457.20 | 12.39 | 314.71 | 0.18 | 4.57 | 34.00 | 15.42 | 12.00 | 304.80 | 0.38 | 9.53 | 75.00 | 34.01 |
| 14 " | 350 | 14.00 | 355.60 | 21.00 | 533.40 | 13.62 | 346.05 | 0.19 | 4.78 | 46.00 | 20.86 | 13.25 | 336.55 | 0.38 | 9.53 | 89.00 | 40.36 |
| 16 " | 400 | 16.00 | 406.40 | 24.00 | 609.60 | 15.62 | 396.85 | 0.19 | 4.78 | 60.00 | 27.21 | 15.25 | 387.35 | 0.38 | 9.53 | 116.00 | 52.61 |
| 18 " | 450 | 18.00 | 457.20 | 27.00 | 685.80 | 17.62 | 447.65 | 0.19 | 4.78 | 75.00 | 34.01 | 17.25 | 438.15 | 0.38 | 9.53 | 154.00 | 69.84 |
| 20 " | 500 | 20.00 | 508.00 | 30.00 | 762.00 | 19.56 | 496.93 | 0.22 | 5.54 | 126.00 | 57.14 | 19.25 | 488.95 | 0.38 | 9.53 | 189.00 | 85.71 |
| 24 " | 600 | 24.00 | 609.60 | 36.00 | 914.40 | 23.50 | 596.90 | 0.25 | 6.35 | 177.00 | 80.27 | 23.25 | 590.55 | 0.38 | 9.53 | 265.00 | 120.18 |
