Rincian Produk
Tempat asal: Baoji, Cina
Nama merek: LIHUA
Sertifikasi: ISO9001, TUV etc.
Nomor model: LH-WT
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 1 buah
Harga: US dollar $10/pc--US dollar $200/pc
Kemasan rincian: kotak kayu lapis untuk ekspor
Waktu pengiriman: 5-25 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 50000 pcs per bulan
Standar: |
ASME B16.9 |
Bahan: |
Gr1 GR2 |
Aplikasi: |
Sambungan Pipa |
Diameter luar: |
1/2"-48" |
Ketebalan dinding: |
Sch5s-Sch160s |
Teknik: |
Mulus/Dilas |
Standar: |
ASME B16.9 |
Bahan: |
Gr1 GR2 |
Aplikasi: |
Sambungan Pipa |
Diameter luar: |
1/2"-48" |
Ketebalan dinding: |
Sch5s-Sch160s |
Teknik: |
Mulus/Dilas |

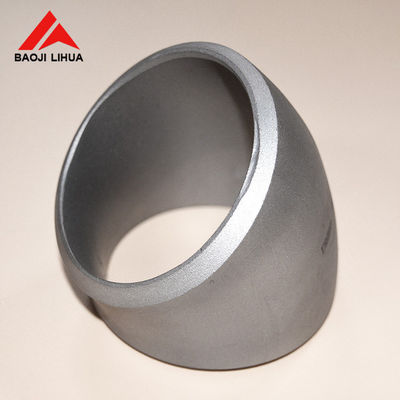

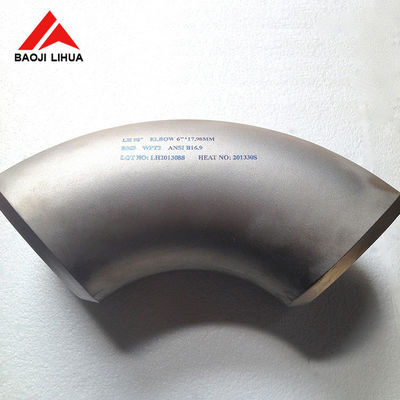

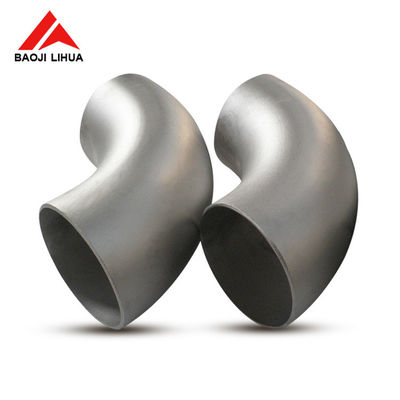

45 derajat 90 derajat Titanium siku gr1 gr2 Titanium tikungan untuk sambungan pipa
1Keuntungan Titanium Elbow
2Informasi produk Titanium Elbow
Kelas:GR1 GR2 GR7 GR12
Standar:ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN dll.
Aplikasi:Industri kimia
Jenis:45 derajat siku, 90 derajat siku, 180 derajat siku
Tipe 2:Radius panjang, radius pendek
Teknik:Tanpa jahitan, dilas
Diameter luar:1/2 "-48" ((DN15-DN1200)
Ketebalan dinding:Sch5s-Sch160s
| Jadwal 10S cahaya N.P.S. | Jadwal 40S NPS standar. | ||||||||||||||||
| Ukuran pipa nominal | Diameter luar | Pusat ke Wajah | Ketebalan dinding | Diameter dalam | Kira-kira. Wt dalam pound / kg. | Ketebalan dinding | Diameter dalam | Kira-kira. Wt dalam pound / kg. | |||||||||
| dalam | mm | dalam | mm | dalam | mm | dalam | mm | dalam | mm | lb | kg | dalam | mm | dalam | mm | lb | kg |
| 1/2 " | 15 | 0.84 | 21.34 | 0.63 | 15.88 | 0.08 | 2.11 | 0.67 | 17.12 | 0.04 | 0.02 | 0.11 | 2.77 | 0.62 | 15.80 | 0.05 | 0.02 |
| 3/4 " | 20 | 1.05 | 26.67 | 0.44 | 11.11 | 0.08 | 2.11 | 0.88 | 22.45 | 0.04 | 0.02 | 0.11 | 2.87 | 0.82 | 20.93 | 0.05 | 0.02 |
| 1 " | 25 | 1.32 | 33.40 | 0.88 | 22.23 | 0.11 | 2.77 | 1.10 | 27.86 | 0.11 | 0.05 | 0.13 | 3.38 | 1.05 | 26.64 | 0.14 | 0.06 |
| 1-1/4 " | 32 | 1.66 | 42.16 | 1.00 | 25.40 | 0.11 | 2.77 | 1.44 | 36.63 | 0.14 | 0.06 | 0.14 | 3.56 | 1.38 | 35.05 | 0.22 | 0.10 |
| 1-1/2 " | 40 | 1.90 | 48.26 | 1.13 | 28.58 | 0.11 | 2.77 | 1.68 | 42.72 | 0.22 | 0.10 | 0.15 | 3.68 | 1.61 | 40.89 | 0.28 | 0.13 |
| 2 " | 50 | 2.38 | 60.33 | 1.38 | 34.93 | 0.11 | 2.77 | 2.16 | 54.79 | 0.32 | 0.15 | 0.15 | 3.91 | 2.07 | 52.50 | 0.50 | 0.23 |
| 2-1/2 " | 65 | 2.88 | 73.03 | 1.75 | 44.45 | 0.12 | 3.05 | 2.64 | 66.93 | 0.61 | 0.28 | 0.20 | 5.16 | 2.47 | 62.71 | 0.97 | 0.44 |
| 3 " | 80 | 3.50 | 88.90 | 2.00 | 50.80 | 0.12 | 3.05 | 3.26 | 82.80 | 0.79 | 0.36 | 0.22 | 5.49 | 3.07 | 77.93 | 1.36 | 0.62 |
| 3-1/2 " | 90 | 4.00 | 101.60 | 2.25 | 57.15 | 0.12 | 3.05 | 3.76 | 95.50 | 0.95 | 0.43 | 0.23 | 5.74 | 3.55 | 90.12 | 1.79 | 0.81 |
| 4 " | 100 | 4.50 | 114.30 | 2.50 | 63.50 | 0.12 | 3.05 | 4.26 | 108.20 | 1.36 | 0.62 | 0.24 | 6.02 | 4.03 | 102.26 | 2.63 | 1.19 |
| 5 " | 125 | 5.56 | 141.30 | 3.13 | 79.38 | 0.13 | 3.40 | 5.30 | 134.49 | 2.29 | 1.04 | 0.26 | 6.55 | 5.05 | 128.19 | 4.33 | 1.96 |
| 6 " | 150 | 6.63 | 168.28 | 3.75 | 95.25 | 0.13 | 3.40 | 6.36 | 161.47 | 3.43 | 1.56 | 0.28 | 7.11 | 6.07 | 154.05 | 6.86 | 3.11 |
| 8 " | 200 | 8.63 | 219.08 | 5.00 | 127.00 | 0.15 | 3.76 | 8.33 | 211.56 | 6.75 | 3.06 | 0.32 | 8.18 | 7.98 | 202.72 | 13.50 | 6.12 |
| 10 " | 250 | 10.75 | 273.05 | 6.25 | 158.75 | 0.17 | 4.19 | 10.42 | 264.67 | 12.50 | 5.67 | 0.37 | 9.27 | 10.02 | 254.51 | 24.50 | 11.11 |
| 12 " | 300 | 12.75 | 323.85 | 7.50 | 190.50 | 0.18 | 4.57 | 12.39 | 314.71 | 17.00 | 7.71 | 0.38 | 9.53 | 12.00 | 304.80 | 37.50 | 17.01 |
| 14 " | 350 | 14.00 | 355.60 | 8.75 | 222.25 | 0.19 | 4.78 | 13.62 | 346.05 | 23.00 | 10.43 | 0.38 | 9.53 | 13.25 | 336.55 | 44.50 | 20.18 |
| 16 " | 400 | 16.00 | 406.40 | 10.00 | 254.00 | 0.19 | 4.78 | 15.62 | 396.85 | 30.00 | 13.61 | 0.38 | 9.53 | 15.25 | 387.35 | 58.00 | 26.30 |
| 18 " | 450 | 18.00 | 457.20 | 11.25 | 285.75 | 0.19 | 4.78 | 17.62 | 447.65 | 38.00 | 17.23 | 0.38 | 9.53 | 17.25 | 438.15 | 75.00 | 34.01 |
| 20 " | 500 | 20.00 | 508.00 | 12.50 | 317.50 | 0.22 | 5.54 | 19.56 | 496.93 | 63.00 | 28.57 | 0.38 | 9.53 | 19.25 | 488.95 | 94.00 | 42.63 |
| 24 " | 600 | 24.00 | 609.60 | 15.00 | 381.00 | 0.25 | 6.35 | 23.50 | 596.90 | 89.00 | 40.36 | 0.38 | 9.53 | 23.25 | 590.55 | 133.00 | 60.32 |
| Jadwal 10S cahaya N.P.S. | Jadwal 40S NPS standar. | ||||||||||||||||
| Ukuran pipa nominal | Diameter luar | Pusat ke Wajah | Diameter dalam | Ketebalan dinding | Kira-kira. Wt dalam pound / kg. | Diameter dalam | Ketebalan dinding | Kira-kira. Wt dalam pound / kg. | |||||||||
| dalam | mm | dalam | mm | dalam | mm | dalam | mm | dalam | mm | lb | kg | dalam | mm | dalam | mm | lb | kg |
| 1/2 " | 15 | 0.84 | 21.34 | 1.50 | 38.10 | 0.67 | 17.12 | 0.08 | 2.11 | 0.08 | 0.04 | 0.62 | 15.80 | 0.11 | 2.77 | 0.10 | 0.05 |
| 3/4 " | 20 | 1.05 | 26.67 | 1.13 | 28.58 | 0.88 | 22.45 | 0.08 | 2.11 | 0.09 | 0.04 | 0.82 | 20.93 | 0.11 | 2.87 | 0.11 | 0.05 |
| 1 " | 25 | 1.32 | 33.40 | 1.50 | 38.10 | 1.10 | 27.86 | 0.11 | 2.77 | 0.17 | 0.08 | 1.05 | 26.64 | 0.13 | 3.38 | 0.20 | 0.09 |
| 1-1/4 " | 32 | 1.66 | 42.16 | 1.88 | 47.63 | 1.44 | 36.63 | 0.11 | 2.77 | 0.29 | 0.13 | 1.38 | 35.05 | 0.14 | 3.56 | 0.32 | 0.15 |
| 1-1/2 " | 40 | 1.90 | 48.26 | 2.25 | 57.15 | 1.68 | 42.72 | 0.11 | 2.77 | 0.39 | 0.18 | 1.61 | 40.89 | 0.15 | 3.68 | 0.50 | 0.23 |
| 2 " | 50 | 2.38 | 60.33 | 3.00 | 76.20 | 2.16 | 54.79 | 0.11 | 2.77 | 0.65 | 0.29 | 2.07 | 52.50 | 0.15 | 3.91 | 0.89 | 0.40 |
| 2-1/2 " | 65 | 2.88 | 73.03 | 3.75 | 95.25 | 2.64 | 66.93 | 0.12 | 3.05 | 1.08 | 0.49 | 2.47 | 62.71 | 0.20 | 5.16 | 1.72 | 0.78 |
| 3 " | 80 | 3.50 | 88.90 | 4.50 | 114.30 | 3.26 | 82.80 | 0.12 | 3.05 | 1.54 | 0.70 | 3.07 | 77.93 | 0.22 | 5.49 | 2.75 | 1.25 |
| 3-1/2 " | 90 | 4.00 | 101.60 | 5.25 | 133.35 | 3.76 | 95.50 | 0.12 | 3.05 | 2.14 | 0.97 | 3.55 | 90.12 | 0.23 | 5.74 | 3.57 | 1.62 |
| 4 " | 100 | 4.50 | 114.30 | 6.00 | 152.40 | 4.26 | 108.20 | 0.12 | 3.05 | 2.72 | 1.23 | 4.03 | 102.26 | 0.24 | 6.02 | 5.26 | 2.39 |
| 5 " | 125 | 5.56 | 141.30 | 7.50 | 190.50 | 5.30 | 134.49 | 0.13 | 3.40 | 4.58 | 2.08 | 5.05 | 128.19 | 0.26 | 6.55 | 8.65 | 3.92 |
| 6 " | 150 | 6.63 | 168.28 | 9.00 | 228.60 | 6.36 | 161.47 | 0.13 | 3.40 | 6.86 | 3.11 | 6.07 | 154.05 | 0.28 | 7.11 | 13.75 | 6.24 |
| 8 " | 200 | 8.63 | 219.08 | 12.00 | 304.80 | 8.33 | 211.56 | 0.15 | 3.76 | 13.50 | 6.12 | 7.98 | 202.72 | 0.32 | 8.18 | 27.00 | 12.24 |
| 10 " | 250 | 10.75 | 273.05 | 15.00 | 381.00 | 10.42 | 264.67 | 0.17 | 4.19 | 25.00 | 11.34 | 10.02 | 254.51 | 0.37 | 9.27 | 48.50 | 22.00 |
| 12 " | 300 | 12.75 | 323.85 | 18.00 | 457.20 | 12.39 | 314.71 | 0.18 | 4.57 | 34.00 | 15.42 | 12.00 | 304.80 | 0.38 | 9.53 | 75.00 | 34.01 |
| 14 " | 350 | 14.00 | 355.60 | 21.00 | 533.40 | 13.62 | 346.05 | 0.19 | 4.78 | 46.00 | 20.86 | 13.25 | 336.55 | 0.38 | 9.53 | 89.00 | 40.36 |
| 16 " | 400 | 16.00 | 406.40 | 24.00 | 609.60 | 15.62 | 396.85 | 0.19 | 4.78 | 60.00 | 27.21 | 15.25 | 387.35 | 0.38 | 9.53 | 116.00 | 52.61 |
| 18 " | 450 | 18.00 | 457.20 | 27.00 | 685.80 | 17.62 | 447.65 | 0.19 | 4.78 | 75.00 | 34.01 | 17.25 | 438.15 | 0.38 | 9.53 | 154.00 | 69.84 |
| 20 " | 500 | 20.00 | 508.00 | 30.00 | 762.00 | 19.56 | 496.93 | 0.22 | 5.54 | 126.00 | 57.14 | 19.25 | 488.95 | 0.38 | 9.53 | 189.00 | 85.71 |
| 24 " | 600 | 24.00 | 609.60 | 36.00 | 914.40 | 23.50 | 596.90 | 0.25 | 6.35 | 177.00 | 80.27 | 23.25 | 590.55 | 0.38 | 9.53 | 265.00 | 120.18 |
3Gambar Rinci Titanium Elbow
4Stok Titanium Elbow
5. Produk terkait Titanium Elbow
6. Aplikasi Titanium Elbow
7Komposisi Kimia Titanium Elbow
| ASTM No. | Fe max | O max | N max | C max | H maksimal | Pd | Al | Bola |
| Kelas 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
| Kelas 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
| Kelas ASTM | Kekuatan tarik | Kekuatan Hasil | Elongasi min % | ||
| KSI | MPa | KSI | MPa | ||
| Kelas 1 | 35 | 240 | 25 | 170 | 30 |
| Kelas 2 | 58 | 400 | 40 | 275 | 25 |
9Perusahaan kami.
Sebagai produsen produk titanium terkemuka selama lebih dari 16 tahun, kami telah mengekspor siku titanium ke banyak negara, termasuk Italia, Turki, Korea dan Chili dll.Kualitas produk kami diakui secara luasJadi kau harus percaya pada perusahaan kami.
