Rincian Produk
Tempat asal: BaoJi Shaanxi Cina
Nama merek: LHTI
Sertifikasi: ISO9001
Nomor model: LH-32
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 5 buah
Harga: US dollar $180/pc-US dollar $300/pc
Kemasan rincian: kasus kayu lapis ekspor standar
Waktu pengiriman: 5-7 hari
Syarat-syarat pembayaran: L/C, D/P, T/T, Western Union, paypal dll
Menyediakan kemampuan: 500 Potongan per Minggu
Bahan: |
Titanium |
Jenis: |
WN |
Standar: |
ANSI B16.5 |
Nilai: |
gr2 |
Permukaan: |
RF |
Aplikasi: |
minyak.industri kimia |
Kata kunci: |
Flensa titanium WN |
Bahan: |
Titanium |
Jenis: |
WN |
Standar: |
ANSI B16.5 |
Nilai: |
gr2 |
Permukaan: |
RF |
Aplikasi: |
minyak.industri kimia |
Kata kunci: |
Flensa titanium WN |

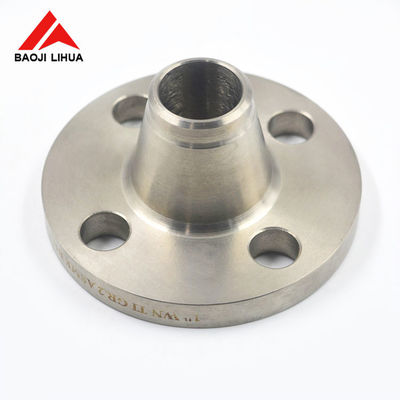

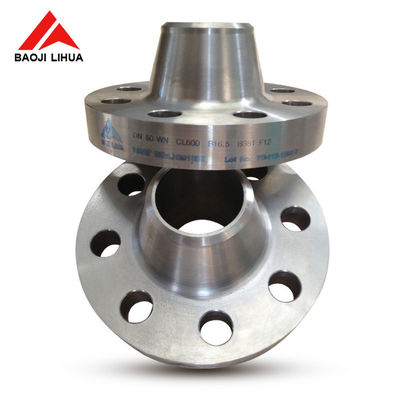

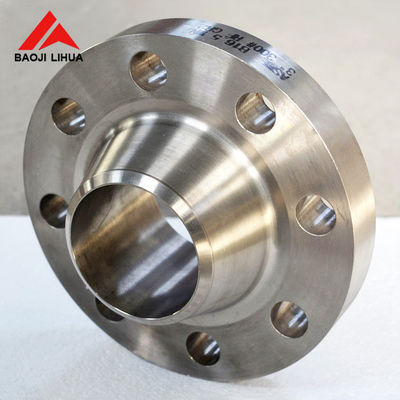

ANSI B16.5 Gr2 WN RF pengelasan leher titanium flange
LHTImenyediakan semua jenis flensa titanium sesuai spesifikasi ASME B16.5, terutama flensa slip-on titanium, flensa buta titanium, flensa leher las titanium dan flensa sambungan lap titanium.Bahan terutama CP Titanium.
1. Flensa Titanium WN
| produk | ASME B 16.5 Ti gr2 titanium WN rf flange industri minyak & gas & minyak flange |
| Kelas Bahan | Gr2, (Gr7, GR12) |
| Sertifikasi | ISO9001: 2008, EN10204.3.1 |
| Standar | ANSI B16.5,ASME B16.5,ASME B16.47, |
| ukuran | 1/2"~ 24" |
| Kelas Tekanan | 150LB, 300LB, 600LB,900LB, 1500LB, 2500LB |
| Teknik | Ditempa dan Mesin CNC |
| Tipe | WN |
| Permukaan flensa | FF, RF, TG, RJ, MFM dll |
1/2" hingga 60" NPS (ANSI) [Hanya Wajah yang Diangkat] Kelas 150 hingga 2500
12" hingga 60" NPS (MSS) Kelas 150 hingga Kelas 900 [Wajah Terangkat] Kelas 300 hingga Kelas 900
| Flange Leher Las Titanium CL150 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| nomorPipa Ukuran |
Flange Dia. | flange tebal | Hub Dia.Di Pangkalan | Mengangkat Wajah Dia. | Hub Dia.di titik las | Tidak. dari lubang |
dia. dari Baut |
dia.Dari lingkaran baut |
Membosankan dia. |
Panjangnya Melalui Hub |
| 1/2 | 3-1/2 | 16/7 | 1-3/16 | 1-3/8 | 0,84 | 4 | 1/2 | 2-3/8 | 0.62 | 1-7/8 |
| 3/4 | 3-7/8 | 1/2 | 1-1/2 | 11-11/16 | 1.05 | 4 | 1/2 | 2-3/4 | 0.82 | 2-1/16 |
| 1 | 4-1/4 | 9/16 | 1-15/16 | 2 | 1.32 | 4 | 1/2 | 3-1/8 | 1.05 | 2-3/16 |
| 1-1/4 | 4-5/8 | 5/8 | 2-5/16 | 2-1/2 | 1.66 | 4 | 1/2 | 3-1/2 | 1.38 | 2-1/4 |
| 1-1/2 | 5 | 11/16 | 2-9/16 | 2-7/8 | 1.90 | 4 | 1/2 | 3-7/8 | 1.61 | 2-7/16 |
| 2 | 6 | 3/4 | 3-1/16 | 3-5/8 | 2.38 | 4 | 5/8 | 4-3/4 | 2.07 | 2-1/2 |
| 2-1/2 | 7 | 7/8 | 3-9/16 | 4-1/8 | 2.88 | 4 | 5/8 | 5-1/2 | 2.47 | 2-3/4 |
| 3 | 7-1/2 | 15/16 | 4-1/4 | 5 | 3.50 | 4 | 5/8 | 6 | 3.07 | 2-3/4 |
| 3-1/2 | 8-1/2 | 15/16 | 4-13/16 | 5-1/2 | 4.00 | 8 | 5/8 | 7 | 3.55 | 2-13/16 |
| 4 | 9 | 15/16 | 5-5/16 | 6-3/16 | 4.50 | 8 | 5/8 | 7-1/2 | 4.03 | 3 |
| 5 | 10 | 15/16 | 6-7/16 | 7-5/16 | 5.56 | 8 | 3/4 | 8-1/2 | 5.05 | 3-1/2 |
| 6 | 11 | 1 | 7-9/16 | 8-1/2 | 6.63 | 8 | 3/4 | 9-1/2 | 6.07 | 3-1/2 |
| 8 | 13-1/2 | 1-1/8 | 11/9/16 | 10-5/8 | 8.63 | 8 | 3/4 | 11-3/4 | 7.98 | 4 |
| 10 | 16 | 1-3/16 | 12 | 12-3/4 | 10,75 | 12 | 7/8 | 14-1/4 | 10.02 | 4 |
| 12 | 19 | 1-1/4 | 14-3/8 | 15 | 12.75 | 12 | 7/8 | 17 | 12.00 | 4-1/2 |
| 14 | 21 | 1-3/8 | 15-3/4 | 16-1/4 | 14.00 | 12 | 1 | 18-3/4 | 13.25 | 5 |
| 16 | 23-1/2 | 1-7/16 | 18 | 18-1/2 | 16.00 | 16 | 1 | 21-1/4 | 15.25 | 5 |
| 18 | 25 | 1-9/16 | 19-7/8 | 21 | 18.00 | 16 | 1-1/8 | 22-3/4 | 17.25 | 5-1/2 |
| 20 | 27-1/2 | 11-11/16 | 22 | 23 | 20.00 | 20 | 1-1/8 | 25 | 19.25 | 11/5/16 |
| 24 | 32 | 1-7/8 | 26-1/8 | 27-1/4 | 24.00 | 20 | 1-1/4 | 29-1/2 | 23.25 | 6 |
