| Nama merek: | LHTi |
| Nomor Model: | lembaran titanium |
| Jumlah Pesanan Minimum: | 50 kg |
| Ketentuan Pembayaran: | T/T, MoneyGram, L/C, Western Union |
| Kemampuan Penyediaan: | 200000 kg per bulan |

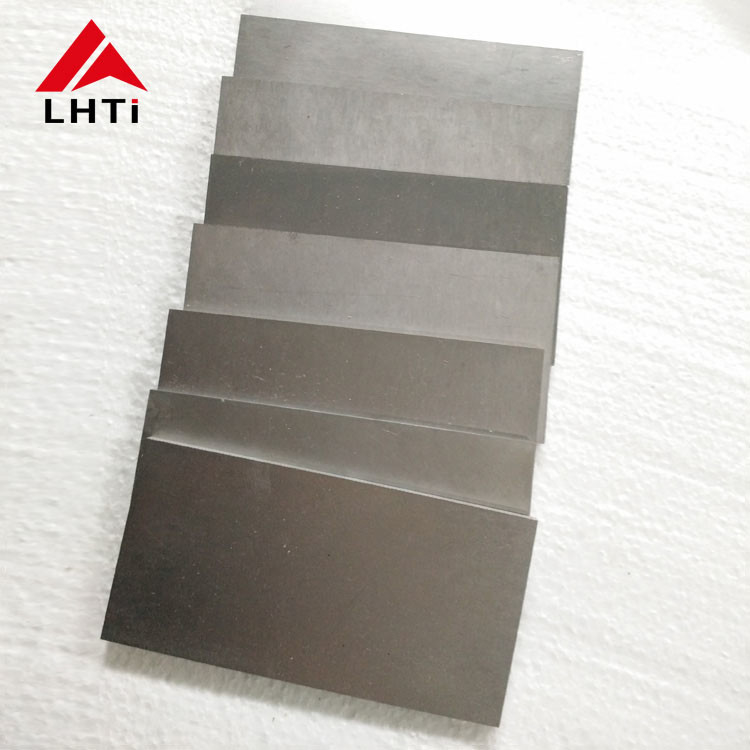

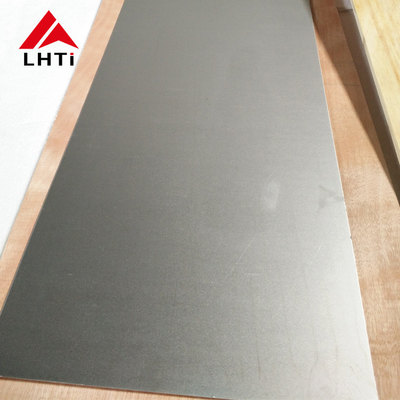

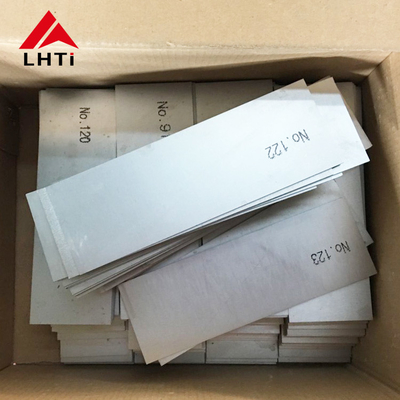

BersihTitaniumGR1 GR2 GR5Titanium pelat/ lembar
| Standar | ASTM B265, AMS 4911, AMS 4916, ASTM F67, ASTM F136 |
|---|---|
| Kelas | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr23, dll. |
| Ketebalan | 0.5mm - 30mm |
| Lebar | 10mm - 2500mm |
| Teknologi | Gelas panas, gelas dingin, pemalsuan panas, pemesinan |
| Kondisi | Digulung dingin ((Y), digulung panas ((R), dipanaskan (M), dimurnikan ((C) |
| Permukaan | Permukaan acar, permukaan dipoles, permukaan hitam |
| Persyaratan kimia | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Tidak | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bola |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bola |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5 ~ 6.75 | 3.5 ~ 4.5 | / | / | / | bola |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12 ~ 0.25 | / | / | bola |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2 ~ 0.4 | 0.6 ~ 0.9 | bola |
| Persyaratan tegangan | |||||
| Kelas | Panjang tarik ((min) | Kekuatan yield ((mm) | Perpanjangan ((%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
