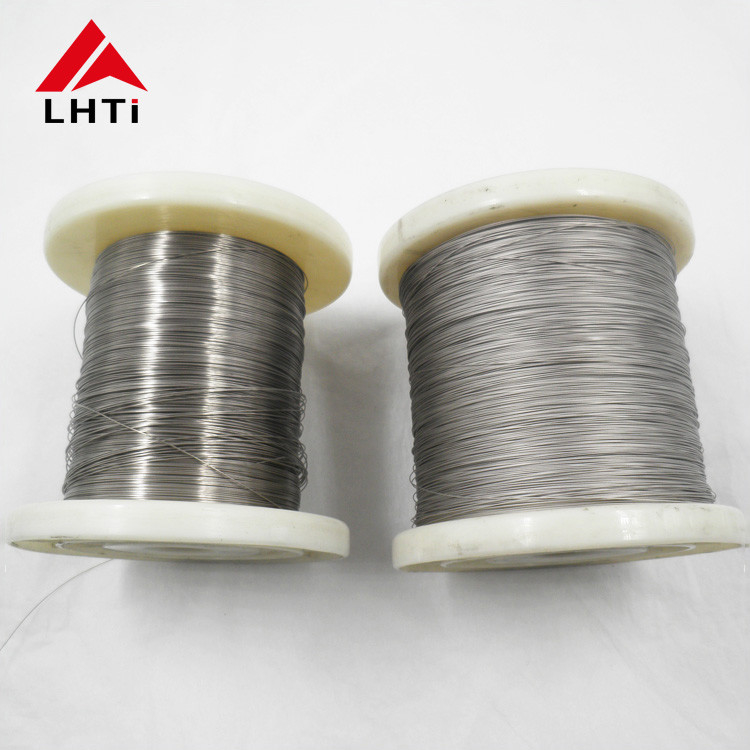

Name: Sertifikasi ISO ASTM F136 Gr1 Gr2 Gr3 Medical Titanium Wire
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-Kawat
Price: 22.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Baoji, Tiongkok

Nama merek: LHTi

Sertifikasi: ISO9001, TUV etc.

Nomor model: LH-Kawat

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 20kg

Harga: USD16.00-28.00 per kg

Kemasan rincian: Packing standar ekspor, kasus kayu lapis di luar

Waktu pengiriman: 3-15 hari kerja

Syarat-syarat pembayaran: L/C, D/P, T/T, Western Union,paypal

Menyediakan kemampuan: 200000 kg per bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                ASTM F136 Titanium Wire, Kawat Titanium Medis, Gr3 Medical Titanium Wire


Material::	ASTM F67/F136 Titanium Wire For Medical Use Factory Supply	Grade::	Gr1, Gr2
Diameter::	0.5mm-3mm	Straight Wire Length::	1000mm-3000mm
MOQ::	20 Kg	Package Box::	5kg Per Plastic Box, Or As Your Request
Corrosion Resistance:	Excellent	Package Box:	5kg per plastic box, or as your request
Certificate::	ISO9001:2008	Processing Service::	Bending, Cutting
Package Coil::	10~15kg ,or As Per Buyer Requirement	Advantage::	Corrosion Resistance, High Strength, Light Quality

Material::	ASTM F67/F136 Titanium Wire For Medical Use Factory Supply
Grade::	Gr1, Gr2
Diameter::	0.5mm-3mm
Straight Wire Length::	1000mm-3000mm
MOQ::	20 Kg
Package Box::	5kg Per Plastic Box, Or As Your Request
Corrosion Resistance:	Excellent
Package Box:	5kg per plastic box, or as your request
Certificate::	ISO9001:2008
Processing Service::	Bending, Cutting
Package Coil::	10~15kg ,or As Per Buyer Requirement
Advantage::	Corrosion Resistance, High Strength, Light Quality

Sertifikasi ISO ASTM F136 Gr1 Gr2 Gr3 Medical Titanium Wire

ASTM F136 Gr1 Gr2 Gr3 Medical Titanium Wire dengan ketahanan korosi yang sangat baik

Bahan	Titanium murni dan paduan Titanium
Titanium kelas	GR1/GR2/GR3/Gr4/GR5/GR7/GR9/GR12/GR5Eli/Gr23 E-KTP, KTP, KTP, KTP, KTP, KTP, KTP, KTP, KTP, KTP, KTP Ti15333/Alloy Nitinol
Standar	AWS A5.16/ASTM B863/ASME SB863, ASTMF67, ASTM F136, ISO-5832-2(3) dll
Bentuk	Titanium Coil Wire/Titanium Spool Wire/Titanium Straight Wire
Wire Gauge	Dia ((0.06--6) *L
Proses	Bullets bar-hot rolling-drawing-annealing-strength-pickling
Permukaan	Polishing, picking, cuci asam, oksida hitam
Teknik Utama	Hot Forged; Hot Rolled; Cold Drawn; Straighten dll
Sertifikat penggilingan bahan	Menurut EN 10204.3.1 Termasuk Komposisi Kimia dan Sifat Mekanis
Aplikasi	Pengelasan, Industri, Medis, Aerospace, Elektronik dll

Kelas logam dasar ASTM	Logam biasa		Komposisi normal	Rekomendasi Pengisi Logam
	UTS ((min.) ksi[Mpa]	YS(min.) ksi[Mpa]
Kelas 1	35[240]	20[138]	Ti CP1 yang tidak dilegalkan	ERTi-1
Kelas 2	50[345]	40[275]	Ti CP2 yang tidak dilegalkan	ERTi-2
Kelas 4	80[550]	70[483]	Ti CP4 yang tidak dialloy	ERTi-4
Kelas 5	130[895]	120[828]	Ti 6AL-4V	ERTi-5
Kelas 7	50[345]	40[275]	Ti 0,15Pd	ERTi-7

AWS	Spesifikasi Kimia
AWS A5.16	UNS	C	O	N	H	Aku	Al	V	Pd
	Nomor
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25
