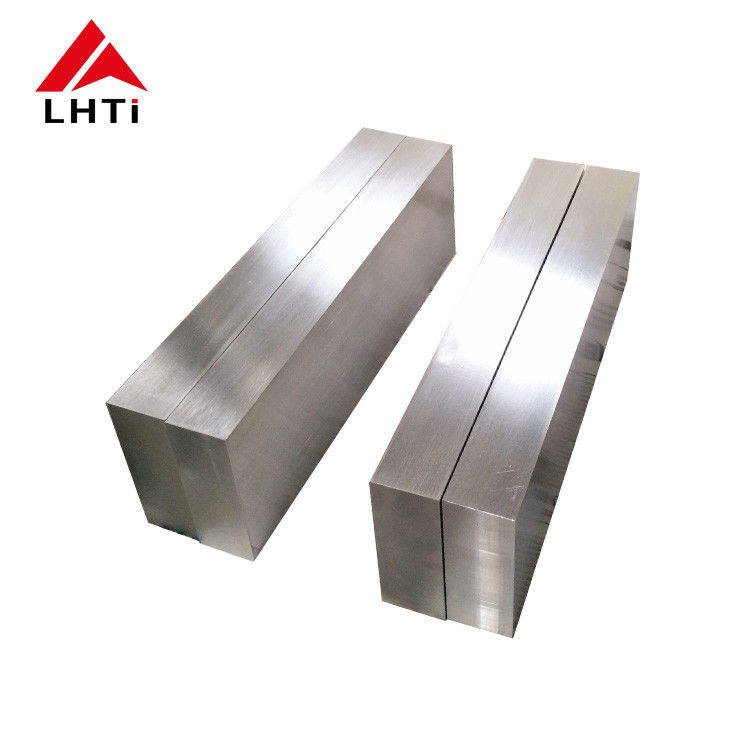

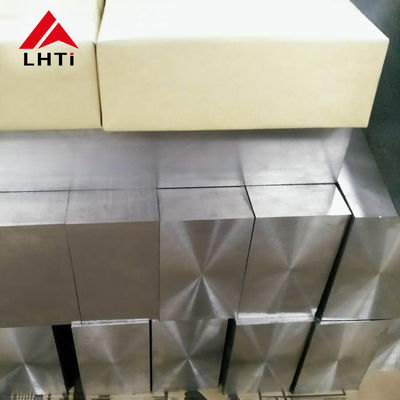

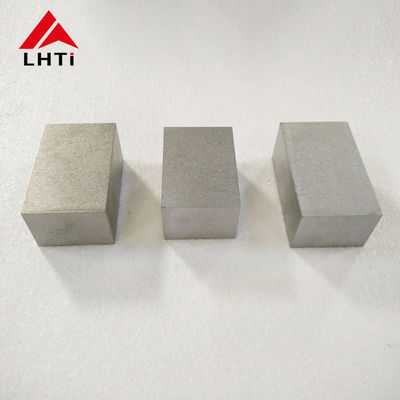

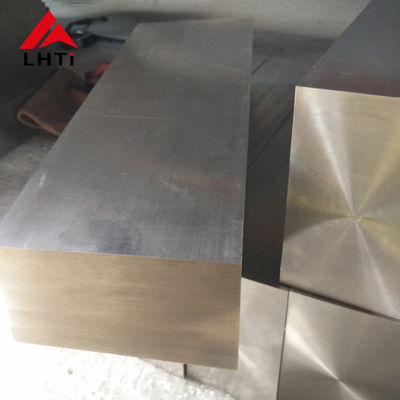

Blok Lembar Titanium Kuadrat Murni ASTM B348
BT1 BT2 BT3 BT4 BT5 BT6 BT7 BT9 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT2 BT1 BT2 BT3 BT3 BT3 BT4 BT4 BT5 BT5 BT6 BT6 BT6 BT6 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7
Standar:ASTM B381
Teknik:Mesin penempaan
Luas: 30-1000 mm
Panjang: 30-1200 mm
| Persyaratan kimia | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Tidak | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bola |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bola |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5 ~ 6.75 | 3.5 ~ 4.5 | / | / | / | bola |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12 ~ 0.25 | / | / | bola |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2 ~ 0.4 | 0.6 ~ 0.9 | bola |
| Persyaratan tegangan | |||||
| Kelas | Panjang tarik ((min) | Kekuatan yield ((mm) | Perpanjangan ((%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
